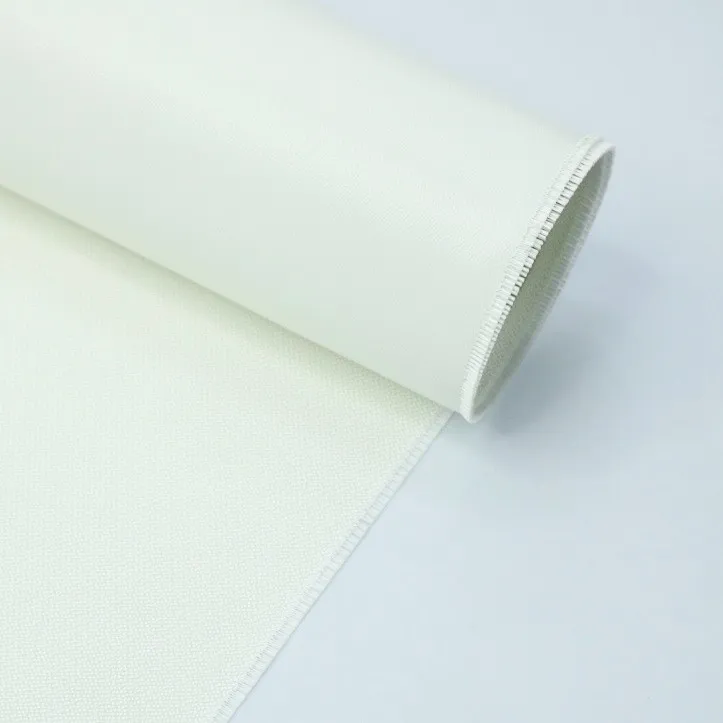

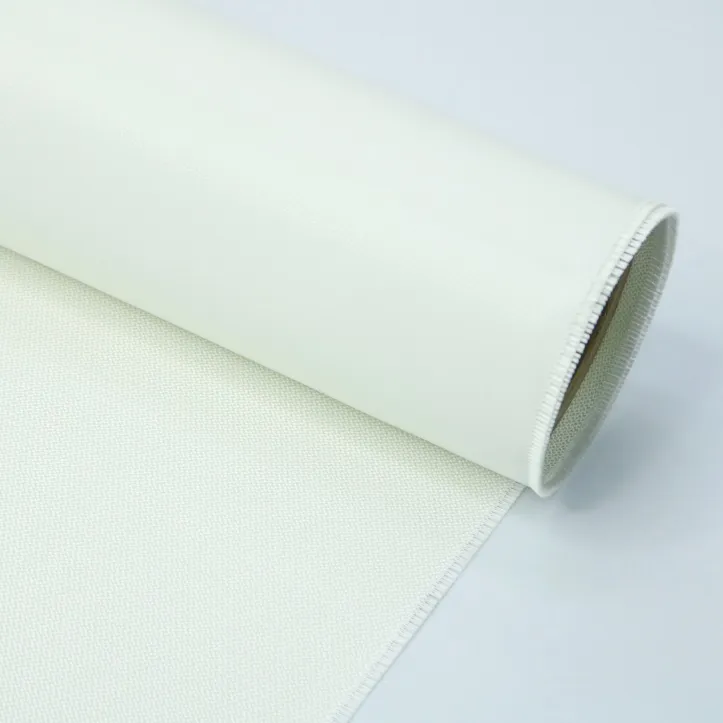

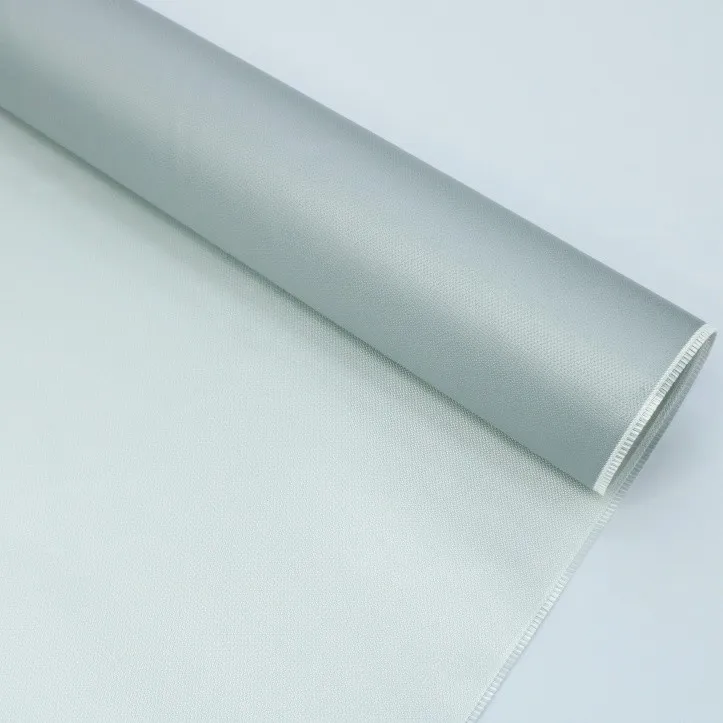

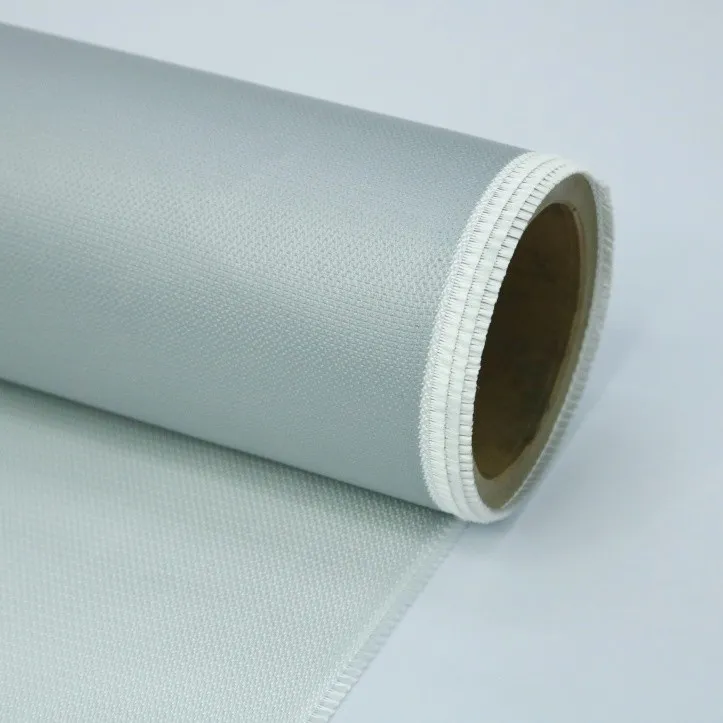

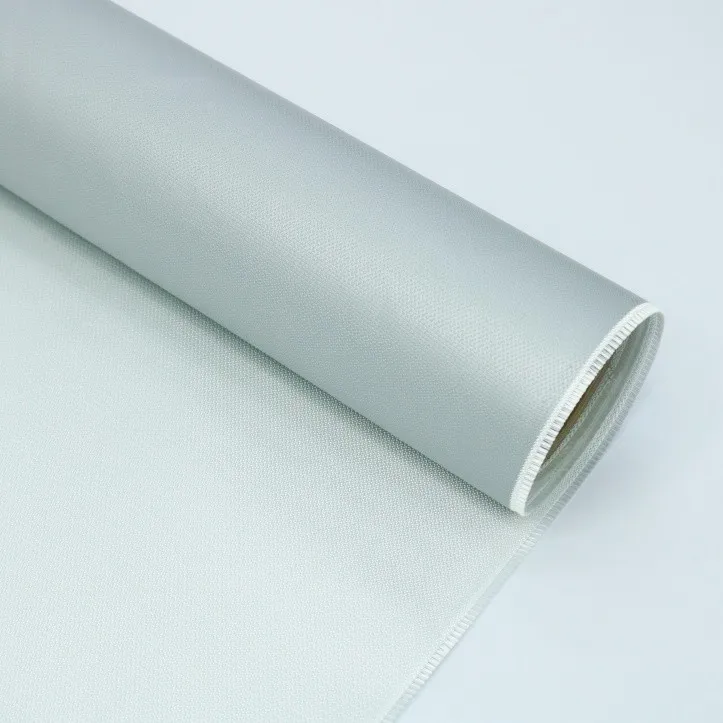

High Silica Double-Sided Gray Silicone Coated Fabric

High Silica Double-Sided Silicone Fabric represents a premium grade composite textile designed for rigorous thermal and industrial environments. Utilizing a highly stable high-silica ceramic fiber carrier uniformly impregnated with advanced silicone resin on both faces, this material delivers exceptional thermal stability, superior dielectric properties, and robust mechanical resilience. Certified to Class A2 flame retardancy and manufactured with precise dimensional control (0.52 mm ±0.02 mm), it exhibits outstanding bidirectional tensile resistance (Warp: 1223.9 N/50mm / Weft: 1259.4 N/50mm). Its flawless, wrinkle-free surface ensures reliable sealing performance, weather resistance, and long-term structural integrity across demanding commercial and technical applications.

Basic Info.

Model NO.	1550-530	Temper	Soft
Treatment	Double-Sided Silicone Coating	Thickness	0.52 mm
Surface State	Smooth Gray (Dual Sides)	Rolling Characteristics	Standard Industrial Wound
Material	High Silica Carrier Fabric + Silicone Resin	Sample	Available Upon Request
Finished Weight	533.6 g/m²	Base Fabric Weight	402.5 g/m²
Silicone Content	131.1 g/m² (~24.6%)	Total Thickness	0.52 mm
Temperature Resistance		OEM Customization	Width & Thickness Can Be Customized
Transport Package	Plastic Wrap + Core Tube + Carton/Pallet	Specification	Customizable Dimensions
Trademark	Mingchen New Materials	Origin	China
HS Code		Production Capacity	Negotiable
Flame Retardancy	Class A2	Warp Tensile Strength	1223.9 N/50mm
Weft Tensile Strength	1259.4 N/50mm	Density

Application Fields

High-temperature furnace linings & flexible expansion joints

Fireproof blankets, curtains & welding protection mats

Industrial machinery thermal insulation & acoustic damping

Protective gear, filtration media & chemical-resistant bags

Aerospace components & specialized engineering seals

Product Features

Our Core Strengths

Delivering precision-engineered silicone composite fabrics for critical thermal and safety applications.

Exceptional Flame & Heat Resistance

Certified to Class A2 fire retardant standards, this high-silica composite effectively resists ignition and prevents flame propagation without melting or toxic smoke emission, ensuring maximum workplace and facility safety.

Superior Mechanical Durability

Engineered with a densely woven high-silica carrier, achieving warp tensile strength of 1223.9 N/50mm and weft strength of 1259.4 N/50mm. Delivers unmatched resistance to tearing, stretching, and operational fatigue under heavy loads.

Precision Dual-Side Saturation

Utilizes a controlled impregnation process applied uniformly to both surfaces, optimizing silicone content at ~24.6% for enhanced chemical resistance, dielectric stability, and consistent flexibility across complex installations.

Rigorous Quality Assurance

Manufactured under strict national testing protocols (JC/T170-2012 & GB/T7689.5-2013), guaranteeing exact thickness tolerance (0.52±0.02 mm) and flawless surface integrity free from wrinkles or exposed fibers.

Versatile Engineering Fit

Ideal for demanding sealing, insulating, and protective roles across HVAC, automotive, petrochemical, and manufacturing sectors where thermal stability and structural reliability are paramount.

Packaging & Shipping

Parameter	Content
Packing	Waterproof plastic wrap + core tube + outer carton/pallet
Carton size	Customized according to roll diameter & width
Weight	Determined by customer specification
MOQ	Based on production scheduling
Lead Time	7-20 (days) depending on order volume
