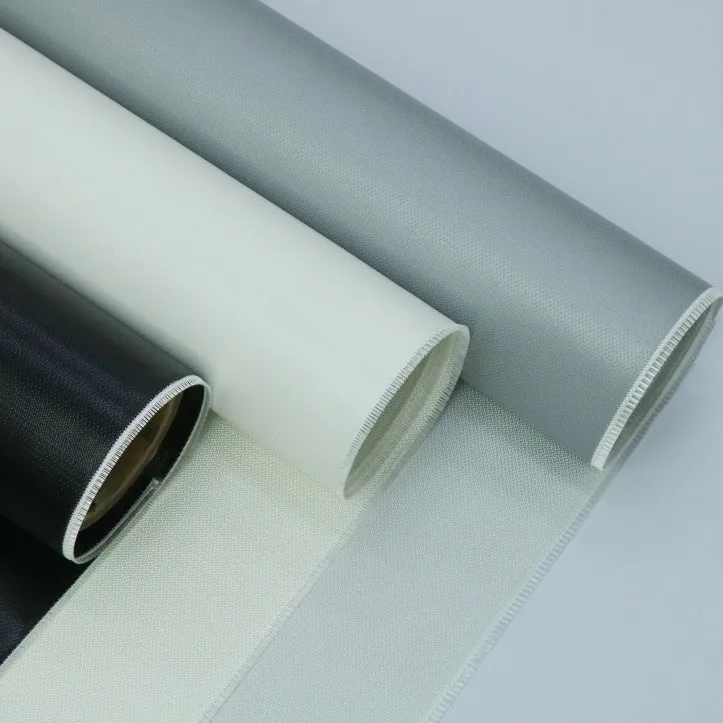

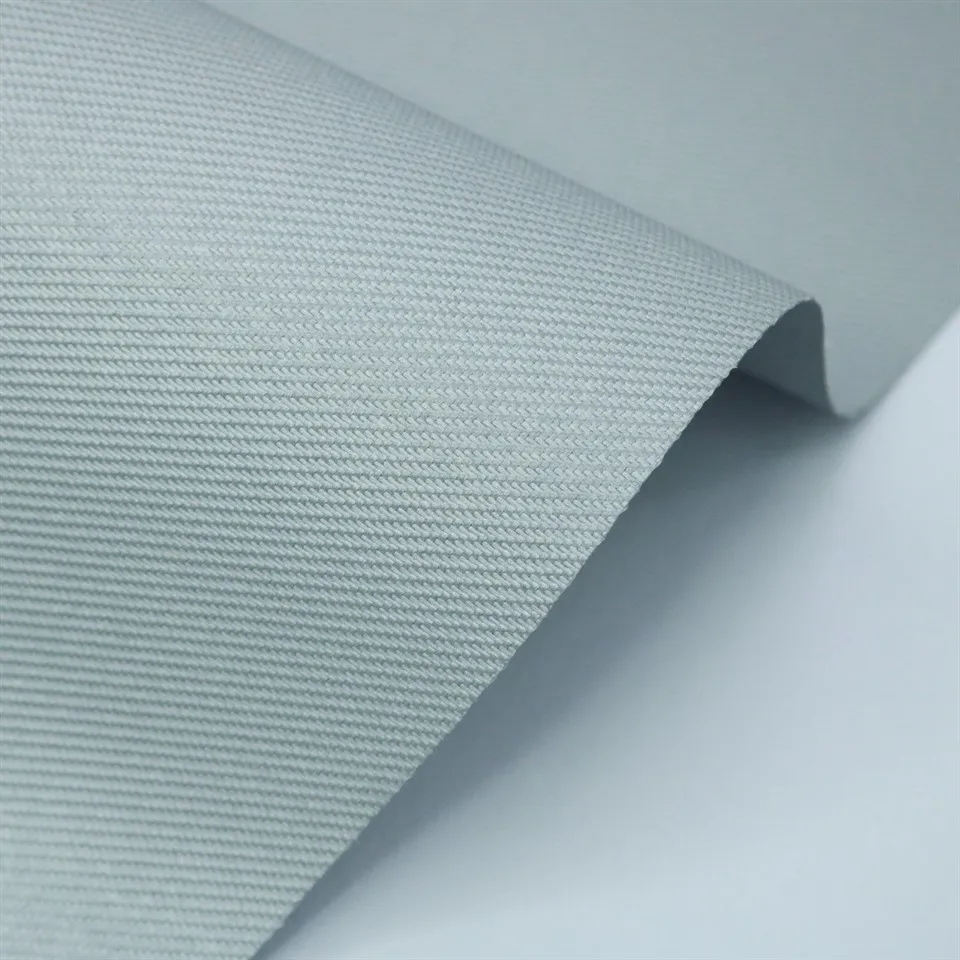

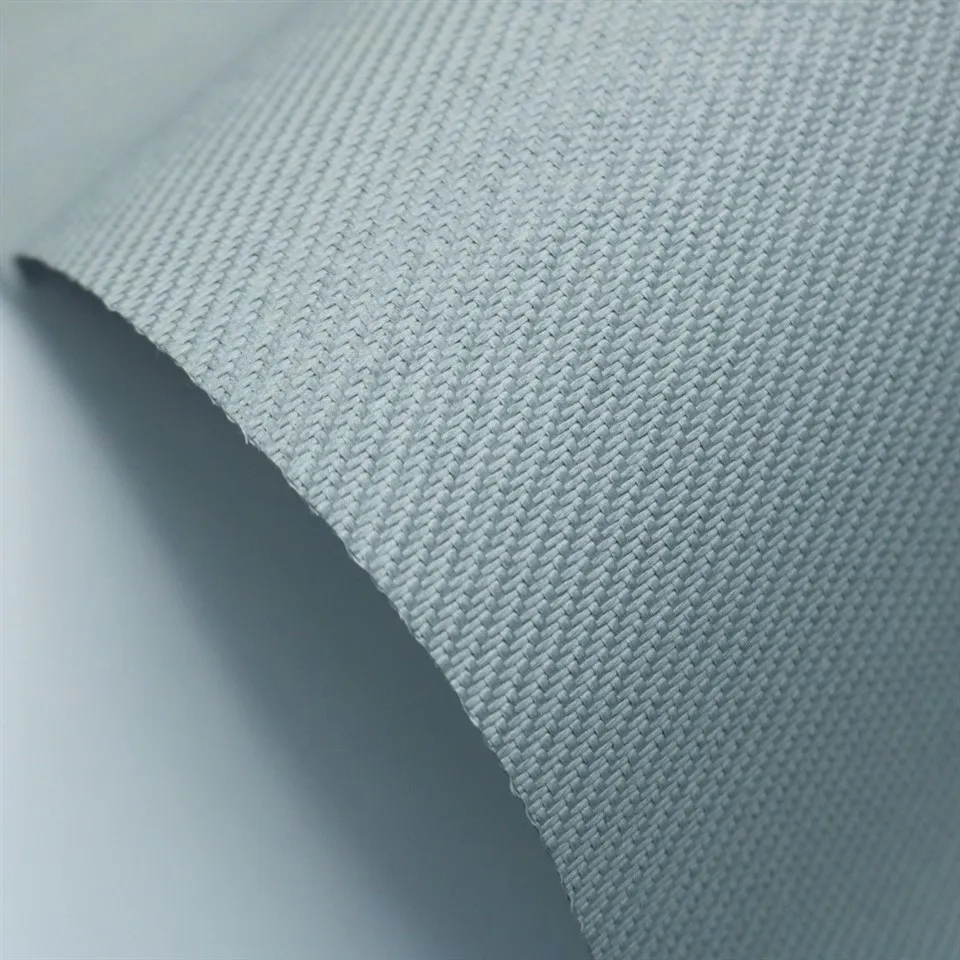

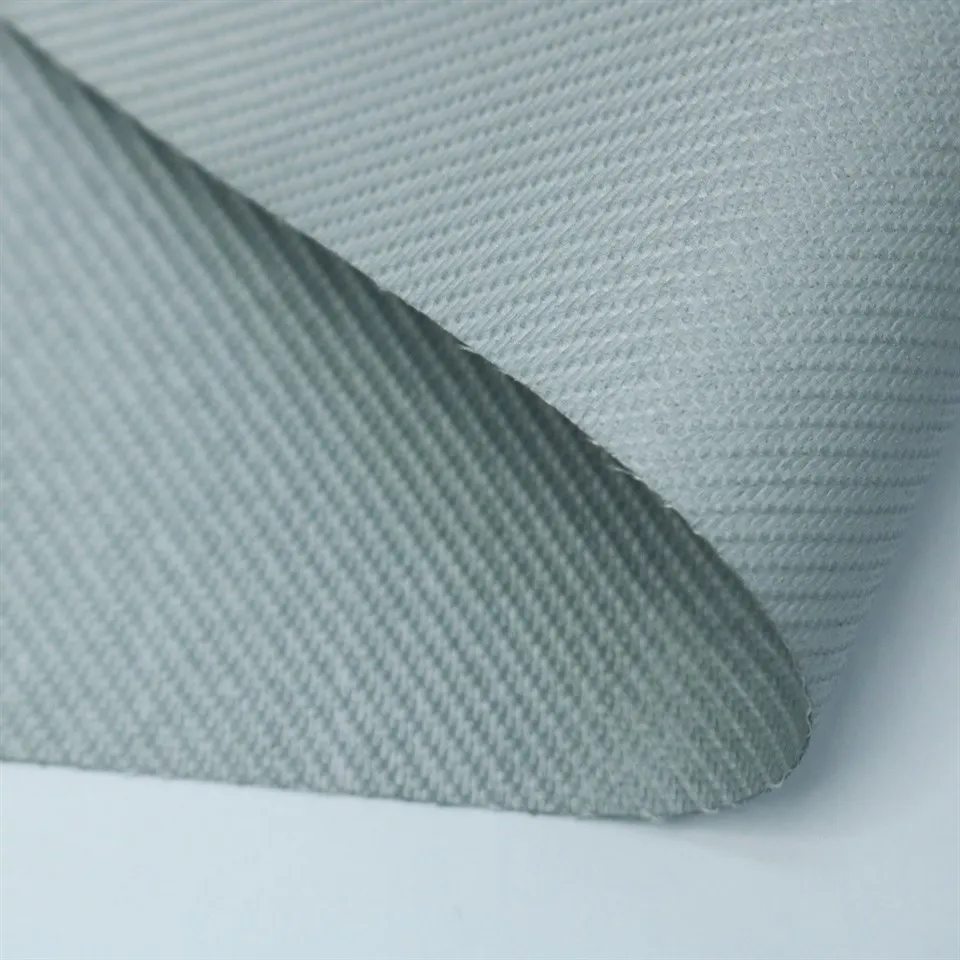

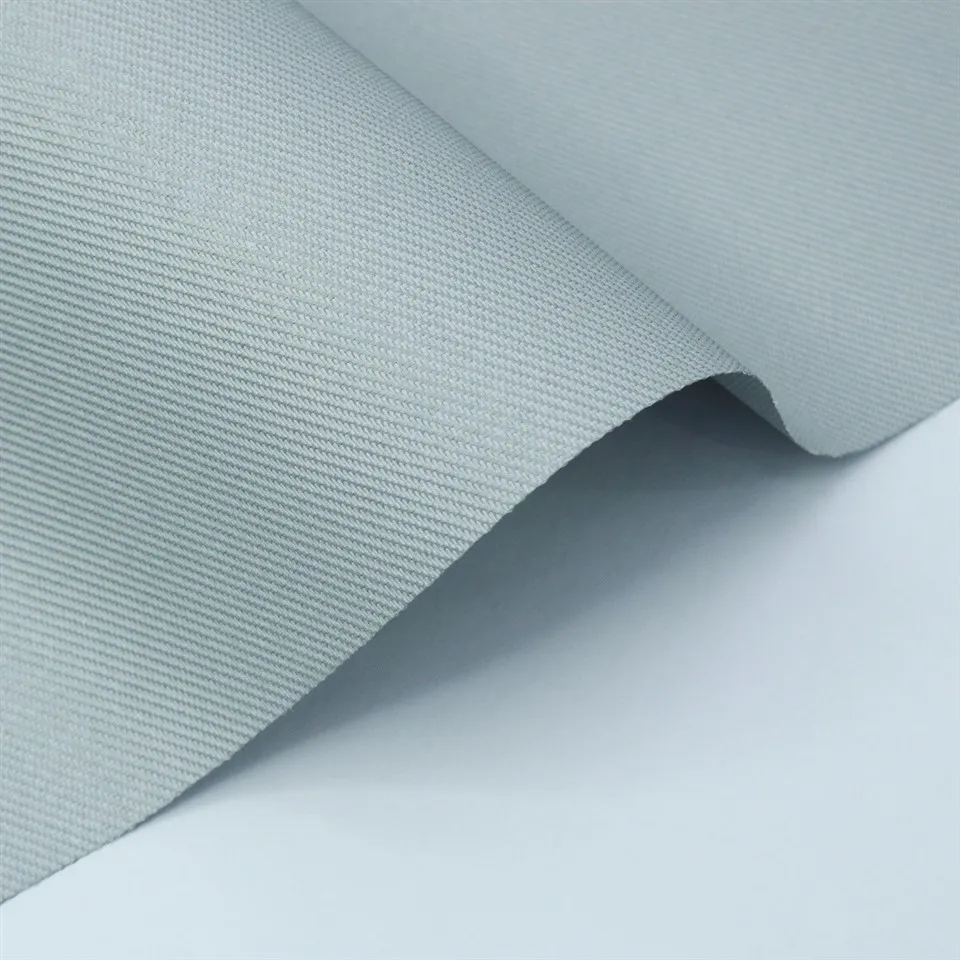

High Performance Double-Sided Gray Silicone Coated Fabric 3732-580

3732 Double-Sided Gray Silicone Fabric is a premium composite textile engineered for rigorous thermal and safety applications. Featuring a high-strength carrier fabric uniformly impregnated with advanced silicone resin on both sides, this material delivers exceptional Class A2 flame retardancy, outstanding mechanical robustness, and precise dimensional stability. With a confirmed finished weight of 593.6 g/m², a total thickness of 0.43 mm, and warp tensile strength exceeding 2150 N/25mm, it maintains structural integrity under extreme stress and temperature fluctuations. Its flawless, wrinkle-free surface ensures reliable dielectric performance and seamless integration into demanding industrial sealing, insulation, and protective systems.

Basic Info.

Model NO.	3732-580	Temper	Soft
Treatment	Double-Sided Silicone Coating	Thickness	0.43 mm
Surface State	Smooth Gray (Dual Sides)	Rolling Characteristics	Wound on Core
Material	Reinforced Base Fabric + Silicone Resin	Sample	Available Upon Request
Finished Weight	593.6 g/m²	Length	Customized
Silicone Content	167.1 g/m² (~28.2%)	Density	Standard Reinforcement
Total Thickness	0.43 mm	Temperature Resistance
Flame Retardancy	Class A2	OEM Customization	Width & Length Can Be Customized
Transport Package	Plastic Wrap + Carton/Pallet	Specification	Customizable Dimensions
Trademark	Mingchen New Materials	Origin	China
HS Code		Production Capacity	Negotiable

Application Fields

High-temperature expansion joints & flexible connections

Fireproof blankets, curtains & welding protection mats

Industrial machinery thermal insulation & sound dampening

Protective gear, gloves & apron backings

Piping wraps & aerospace component shielding

Product Features

Our Core Strengths

Delivering precision-engineered silicone composite fabrics for critical thermal and safety applications.

Exceptional Flame Resistance

Certified to Class A2 fire retardant standards, this double-coated fabric effectively resists ignition and prevents flame spread without melting, dripping, or emitting hazardous smoke, ensuring maximum workplace safety.

Superior Tensile Strength

Engineered with a reinforced carrier matrix, achieving a warp tensile strength of 2151.1 N/25mm and weft strength of 1406.9 N/25mm. Resists tearing, stretching, and structural deformation under heavy loads and continuous mechanical stress.

Precision Dual-Side Coating

Utilizes a uniform impregnation process applied to both sides, delivering a smooth, consistent finish with optimized dielectric properties and enhanced flexibility for complex folding and installation.

Strict Quality Assurance

Manufactured under rigorous testing protocols, guaranteeing exact thickness (0.43±0.02mm) and basis weight stability for predictable performance in demanding environments.

Versatile Industrial Fit

Ideal for sealing, insulating, and protecting components across HVAC, automotive, chemical processing, and construction sectors where heat dissipation and fire safety are paramount.

Packaging & Shipping

Parameter	Content
Packing	Waterproof plastic wrap + core tube + outer carton/pallet
Carton size	Customized according to roll diameter & width
Weight	Determined by customer specification
MOQ	Based on production scheduling
Lead Time	7-20 (days) depending on order volume
