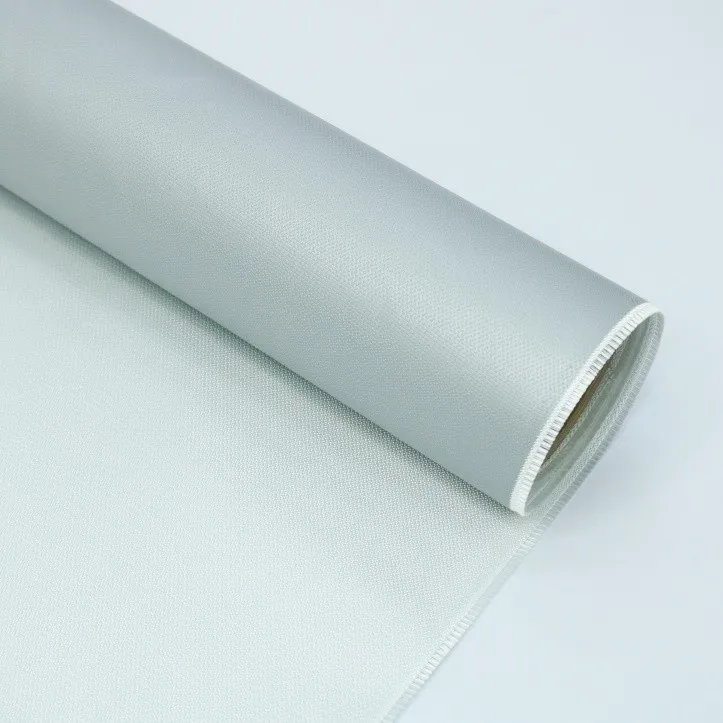

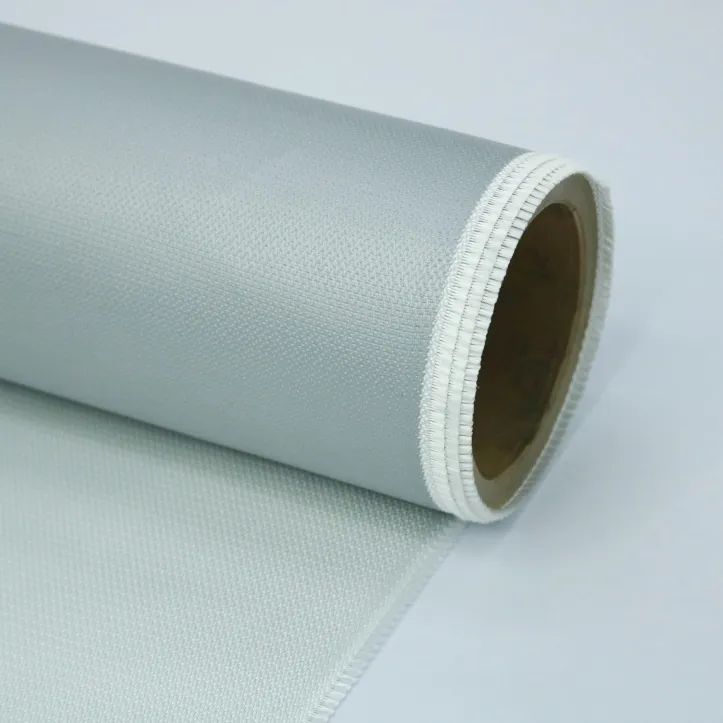

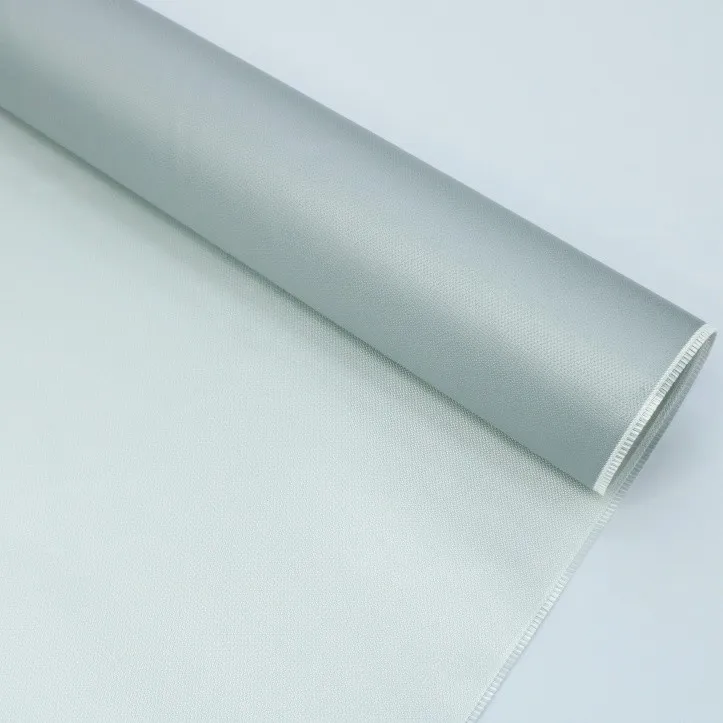

Heavy Duty Double-Sided Gray Silicone Coated Fabric 3784-1160
3784 Double-Sided Gray Silicone Fabric is an advanced composite textile engineered for high-stress industrial environments. Constructed from a dense reinforced carrier matrix uniformly saturated with premium silicone resin on both faces, this material delivers exceptional structural resilience and thermal stability. With a verified finished base of 1170.3 g/m², a precise overall thickness of 0.83 mm, and outstanding bidirectional tensile strength (Warp: 2385.3 N/25mm / Weft: 2641.1 N/25mm), it maintains dimensional integrity under extreme mechanical load. Certified to Class A2 fire retardancy and manufactured with zero surface imperfections, it provides reliable sealing, electrical insulation, and long-term protection across demanding commercial and technical applications.
Basic Info.
| Model NO. | 3784-1160 | Temper | Soft |
| Treatment | Double-Sided Silicone Coating | Thickness | 0.83 mm |
| Surface State | Smooth Gray (Dual Sides) | Rolling Characteristics | Standard Industrial Wound |
| Material | Reinforced Carrier Fabric + Silicone Resin | Sample | Available Upon Request |
| Width | Length | ||
| Total Thickness | 0.83 mm | Density | High-Grammage Reinforcement |
| Temperature Resistance | OEM Customization | ||
| Transport Package | Specification | ||
| Trademark | Mingchen New Materials | Origin | China |
|
HS Code |
Production Capacity |
Application Fields
Heavy-duty expansion joints & flexible duct connections
Industrial fire curtains, welding blankets & spark guards
Machinery thermal insulation & acoustic damping pads
Protective clothing linings, gloves & heat-resistant aprons
Piping encasement & aerospace component shielding
Product Features
Our Core Strengths
Delivering precision-engineered silicone composite fabrics for critical thermal and safety applications.
Exceptional Flame Resistance
Certified to Class A2 fire retardant standards, this thick-profile fabric effectively resists ignition and prevents flame propagation without melting or toxic smoke emission, ensuring maximum occupational safety.
Superior Bidirectional Strength
Engineered with a densely woven carrier, achieving warp tensile strength of 2385.3 N/25mm and weft strength of 2641.1 N/25mm. Delivers unmatched resistance to tearing, stretching, and mechanical fatigue under heavy operational loads.
Precision Dual-Side Saturation
Utilizes a controlled impregnation process applied uniformly to both surfaces, optimizing silicone content at ~27.7% for enhanced chemical resistance, dielectric stability, and long-service life.
Rigorous Quality Assurance
Manufactured under strict national testing protocols (JC/T170-2012 & GB/T7689.5-2013), guaranteeing exact thickness tolerance (0.83±0.02mm) and consistent basis weight for predictable performance.
Versatile Heavy-Duty Fit
Ideal for demanding sealing, insulating, and safety-critical roles across HVAC, automotive, petrochemical, and construction sectors where heat dissipation and structural reliability are paramount.
Packaging & Shipping
| Parameter | Content |
|---|---|
| Packing | Waterproof plastic wrap + core tube + outer carton/pallet |
| Carton size | Customized according to roll diameter & width |
| Weight | Determined by customer specification |
| MOQ | Based on production scheduling |
| Lead Time | 7-20 (days) depending on order volume |
